01 / Finishing

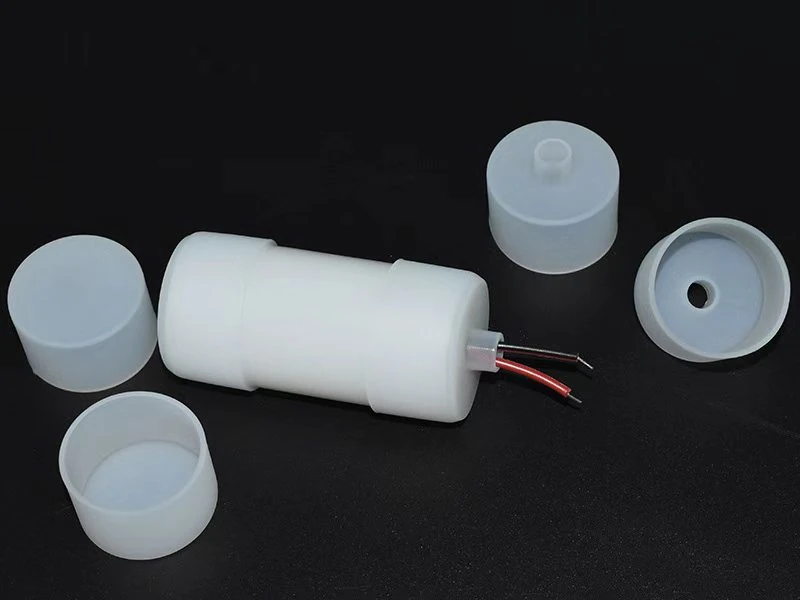

End Caps
Closed and cable-hole formats finish the profile end and define the cable exit. Match the cap to the actual cross-section, end dimensions and assembly method.
Send a clear end view and the cable-exit direction for matching.
LED Lighting Accessories
The Details That Complete Your Lighting Assembly

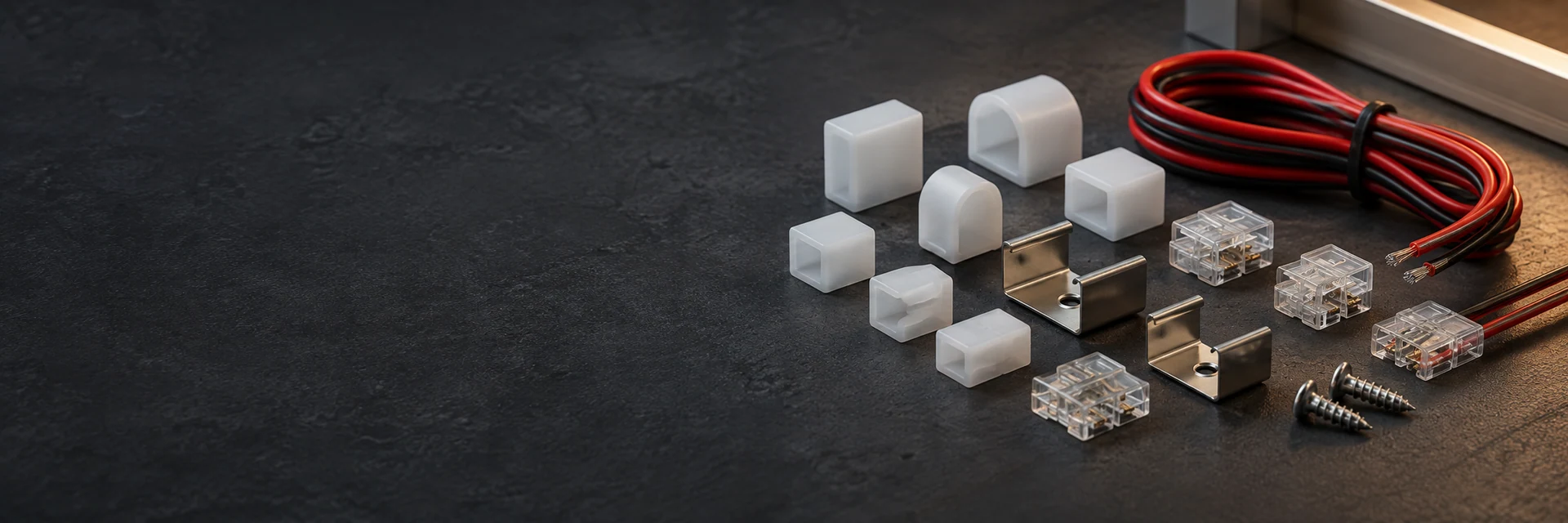

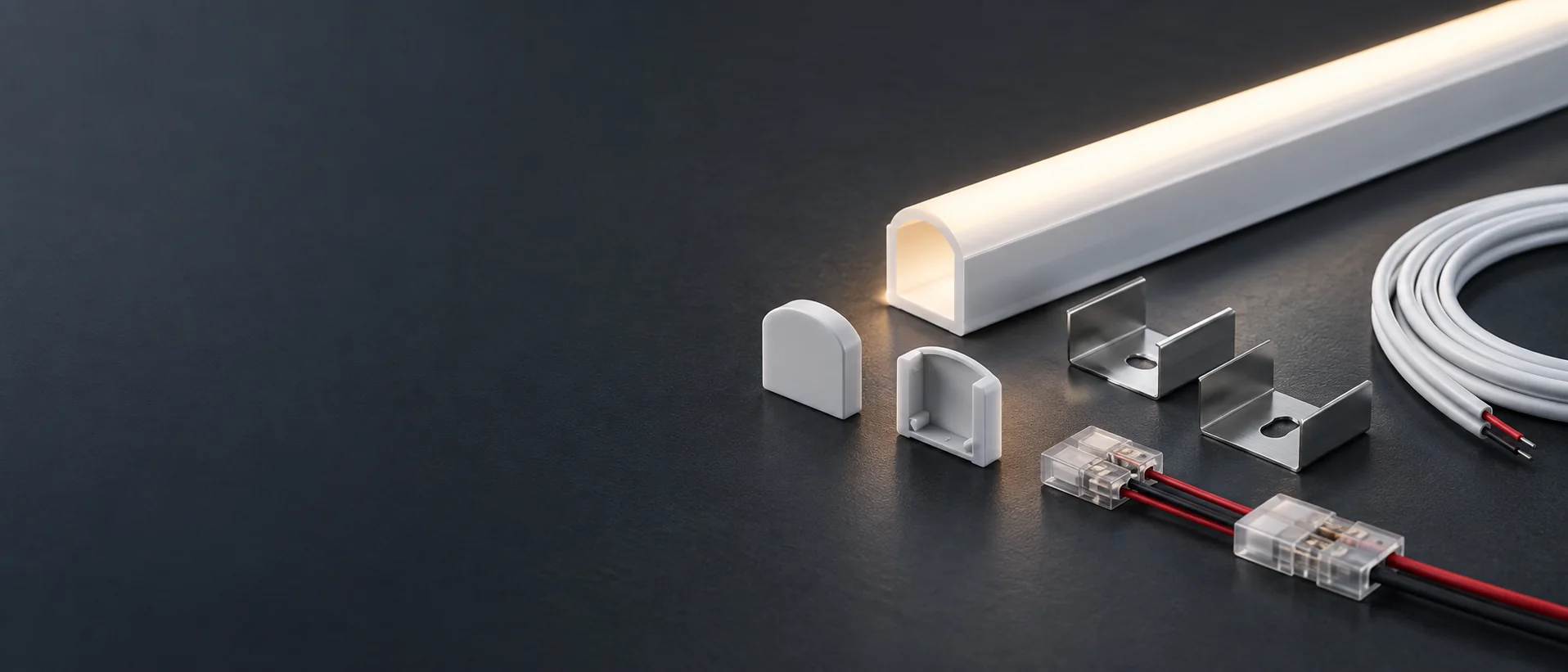

LED accessories include end caps, mounting clips, connectors and cables for lighting projects. Match each part to the profile, strip and connection arrangement rather than assuming a universal fit.
Accessory Range
Close. Mount. Connect.
Select finishing, mounting and connection parts together with the lighting assembly. Each item is reviewed against the selected product and installation detail.
02 / Installation
Mounting Clips
Clips and brackets position the selected lighting profile on the installation surface. Profile geometry, mounting face and fastening method need to be reviewed together.
Confirm the substrate, available space and required mounting direction.
03 / Connection
Connectors & Cables
Connection parts are selected by strip width, contact layout, pin count, cable route and mating components. Similar-looking parts are not evidence of compatibility.
Share photographs of both connection ends and the intended cable route.
Profile & Installation Options
Find the Mounting Bracket or End Cap for Your Profile
Choose the fitting by the actual mating profile, material and interface dimensions. The references below identify specific mounting and finishing parts, not universal accessories. Include the required quantity and photographs of the mating ends with your request.
| Accessory | Matching profile | Dimension reference | What to confirm |
|---|---|---|---|
| D20 PVC mounting bracket | D20 round silicone tube | 20 mm diameter reference | Match the tube outside diameter, bracket opening and fastening surface. |
| D22 PVC mounting bracket | D22 round silicone tube | 22 mm diameter reference | Confirm the actual outside finish, bracket opening and mounting direction. |
| D16 PVC mounting bracket | D16 round tube | 16 mm diameter reference | Check the interface; it is not a universal bracket for every 16 mm finished neon. |
| K13 aluminium bracket | K13 domed tube | 13 mm width reference | Match the mounting base and bracket opening; confirm the remaining dimensions. |
| P3010 aluminium bracket | P3010 flat tube | 30 × 10 mm; length 29 mm | Check the installation surface, orientation and fixing method. |
| K13 silicone end cap | K13 domed tube | 13 mm diameter reference | Match the domed section, insertion interface and cable-exit requirement. |
| K15 silicone end cap | K15 domed tube | 15 mm diameter reference | Select the closed or cable-exit arrangement against the actual end. |
| D22 silicone end cap | D22 round tube | 22 mm diameter reference | Confirm the end fit and cable route before selecting the sealing arrangement. |
| D40 silicone end cap | D40 round tube | 40 mm diameter reference | Match the actual round end and cable outlet; sealing parts do not establish a system IP rating. |
| P10030 silicone end cap | P10030 flat tube | Catalogue internal opening 100 × 30 mm | Confirm the tube-end section and cable exit. Catalogue opening dimensions do not establish insertion depth. |
| P1305 black silicone end cap | P1305 flat tube | 13 × 5 mm; depth 8 mm | Specify black finish and provide an end view to check the interface. |
| P1616 black silicone end cap | P1616 flat tube | 16 × 16 mm; depth 16 mm | Check the exact profile end; it is not automatically compatible with other16×16 products. |
| P3010 silicone end cap | P3010 flat tube | 31 × 16 mm; depth 12 mm | These are cap dimensions, not tube dimensions. Check the insertion interface. |
| P5020 silicone end cap | P5020 flat tube | 52 × 22 mm; depth 16 mm | Confirm the exact end fit; cap dimensions differ from the nominal profile size. |
| B1220 silicone end cap | B1220 side-emitting tube | 12 × 21 mm; depth 14 mm | Match the side-emitting section and cable outlet; do not substitute B2020 parts. |
| PD2020 silicone end cap | PD2020 floor profile | 23 × 23 mm; depth 13 mm | Confirm the floor-profile end, cable direction and installation environment. |
Dimensions are in mm and belong to the listed accessory. Bracket dimensions and cap dimensions must not be substituted for the dimensions of the silicone tube. Screw spacing, fitting tolerance, cable holes and the exact supplied version are confirmed with the quotation.
Part Matching

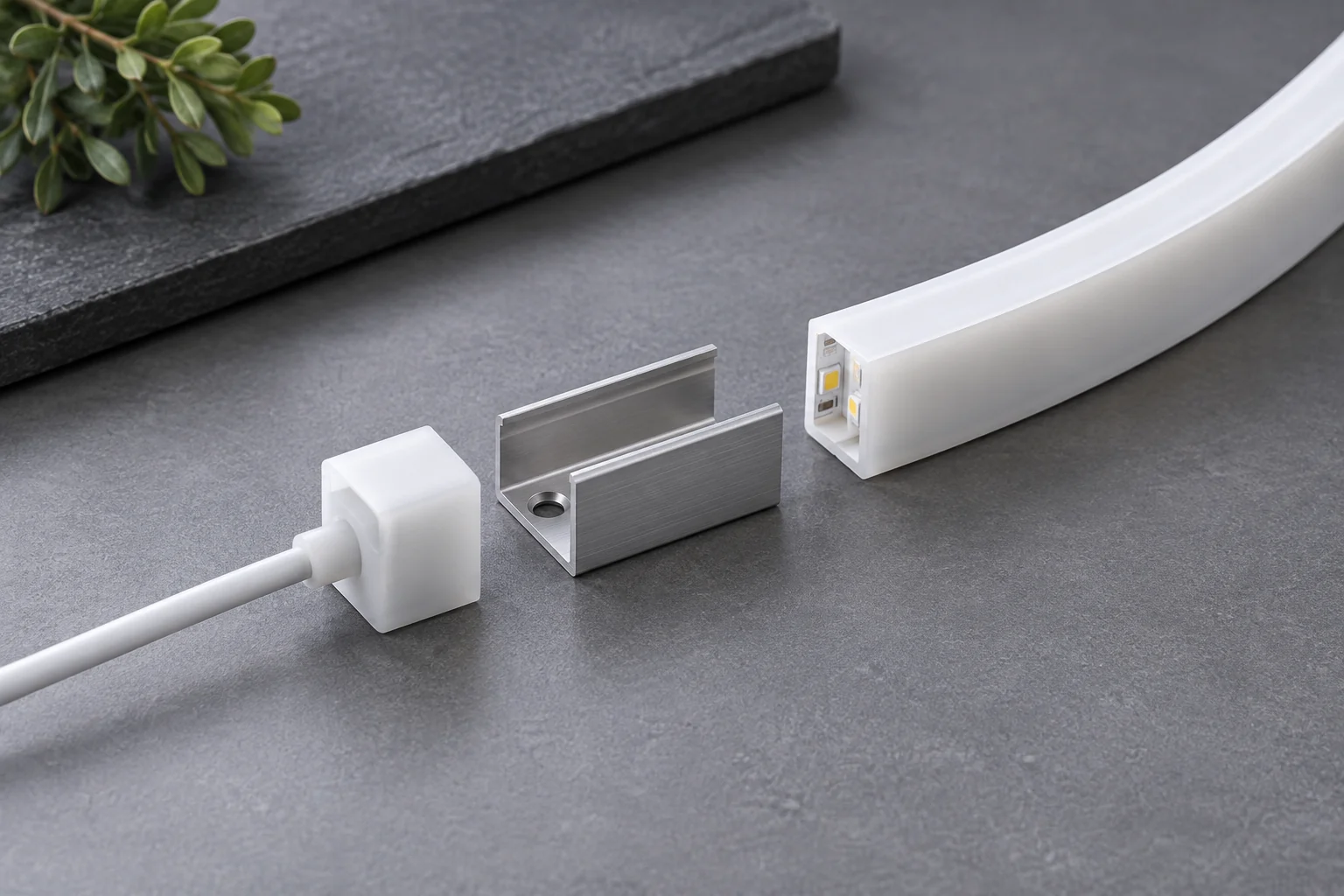

Match the Accessory to the Assembly
A small dimensional or connection difference can prevent a part from fitting. Review the interface before confirming the accessory.
ProfileProduct reference and clear cross-section view
InterfaceEnd dimensions, mounting face and available space
ConnectionContact layout, cable exit and mating components
Project UseMounting route, environment and required quantity
Before Quotation
Three Details That Make Matching Clearer
Provide what is already available. A product reference, dimensioned interface and installation view are usually more useful than a general accessory name.
Identify the Product
Provide the tube or strip reference and a clear photograph of the part to be fitted.
Show the Interface
Include the profile end, mounting face or connector contact arrangement with relevant dimensions.
Describe the Installation
State the cable route, mounting surface, environment and required quantity.
End Cap Selection
Silicone End Caps: Opening and Cable Exit Options
Compare the cap opening and cable outlet separately when choosing fittings for silicone housings or LED Neon Flex. The references below identify catalogue end-cap options, not universal compatibility with every profile of the same nominal size.
Swipe the table to compare dimensions and matching details.
| Original product photo | Cap reference | End arrangement | Nominal internal opening | Cable outlet inner diameter | Cable outlet length |
|---|---|---|---|---|---|
 | 0408 | Straight exit / closed end | 4 x 8 mm | 4 mm | 8 mm |
 | 0410 | Straight exit / closed end | 4 x 10 mm | 4 mm | 8 mm |
 | 0612 | Straight exit / closed end | 6 x 12 mm | 4 mm | 6 mm |
 | 1010 | Straight exit / closed end | 10 x 10 mm | 4 mm | 7 mm |
 | 1212 | Straight exit / closed end | 12 x 12 mm | 4 mm | 7 mm |
 | 1212 | Large-hole straight exit | 12 x 12 mm | 5.2 mm | 7 mm |
 | 1414 | Straight exit / closed end | 14 x 14 mm | 4 mm | 7 mm |
 | 1616 | Straight exit / closed end | 16 x 16 mm | 6 mm | 9 mm |
Dimensions in mm, from the AlisterTech end-cap catalogue, pages 1-2. Values are the catalogue selection references, not manufacturing tolerances. Cable-outlet values apply to the wired cap, not its closed-end partner. Confirm the exact drawing and mating profile before ordering.
End Cap Size and Cable Exit Questions
Is the nominal cap opening the same as the finished outside size?
No. The internal opening describes the mating cavity; the outside size also includes the cap wall and end details. Do not use the cap opening as a groove-cutting dimension or substitute it for the silicone housing drawing.
Why are there two 1212 cable-exit options?
The catalogue lists a standard 4 mm outlet and a larger 5.2 mm outlet for the 1212 reference, both with a listed outlet length of 7 mm. Specify which outlet is required and provide the cable outside diameter and end arrangement. The 12 x 12 mm nominal opening alone does not select the outlet version.
Are wired caps and closed end caps always supplied together?
Specify the quantities of wired and closed ends required for your assembly. Several catalogue photographs show both arrangements for comparison, but the photograph does not establish the pack quantity or contents of your quotation.
Does selecting a silicone end cap establish an IP67 assembly?
No. The cap fit, cable outlet, sealing method and complete selected assembly must be assessed together. Do not treat the end cap by itself as proof of the finished installation's ingress protection rating.
Check the Cap Opening Against the Tube End
AlisterTech supplies catalogue end caps and can review custom silicone profile requirements. Compare the opening and section shape with the tube end, then specify a closed end or cable-exit arrangement. A similar model name or nominal size alone does not identify the correct fitting.
| Catalogue format | Opening reference | Source | Check with your enquiry |
|---|---|---|---|
| 1313 arched | Nominal internal 13 × 13 | End-cap catalogue, page 13 | Arched outline; distinguish from square 1313 |
| 1514 arched | Nominal internal 15 × 14 | End-cap catalogue, page 13 | Drawing callouts and orientation differ from the nominal label; send the mating end view |
| 22 round · 360° format | Nominal internal Ø22 | End-cap catalogue, page 8 | Actual round interface and cable-exit direction; Ø22 is not the cap outside diameter |
| 10030 | Internal 100 × 30 | End-cap catalogue, page 4 | Tube end outline and cable exit; opening size is not outside size or insertion depth |
These references describe catalogue cap formats. For K13, K15, D22 or P10030 requests, attach the tube-end drawing or photograph so the section and mating dimensions can be checked. Keep different cross-section versions separate.
Request a Tube & End Cap QuoteFAQ
Accessory Matching Questions
Confirm the accessory against the selected lighting product rather than relying on appearance alone.
Are the accessories universal?
No. End caps, clips, connectors and cables need to match the dimensions and interfaces of the selected profile or strip.
What should I send to match an end cap?
Send the product reference, a clear cross-section or end photograph, end dimensions and the required cable-exit direction.
How is a mounting clip selected?
Review the profile geometry, mounting face, substrate, available installation space and fastening method together.
What connector information is required?
Provide the strip width, contact arrangement, pin count, photographs of both mating ends and the intended cable route.
Can accessories be reviewed with the lighting product?
Yes. The accessory scope can be reviewed together with the selected profile or strip. The exact supplied items and compatibility are confirmed in the quotation.
Request a Quote
Need the Matching Accessory?
Send the tube model or cut-end drawing, mating dimensions, cable-exit direction, mounting surface and quantity. Include custom silicone profile requirements so the tube and accessory scope can be reviewed in one quotation.
