White & Fixed Colour
Choose a white or fixed-colour light line. Tell us the required shade when requesting a sample.
- LED
- SMD2835
- Density
- 120 LEDs/m
- Power
- 10 W/m
- Supply / cut
- 24 V / 50 mm
AL-HR11-B243012001
Ask About White or Fixed Colour →
LED Neon Flex Series
AL-HR11-B243012001

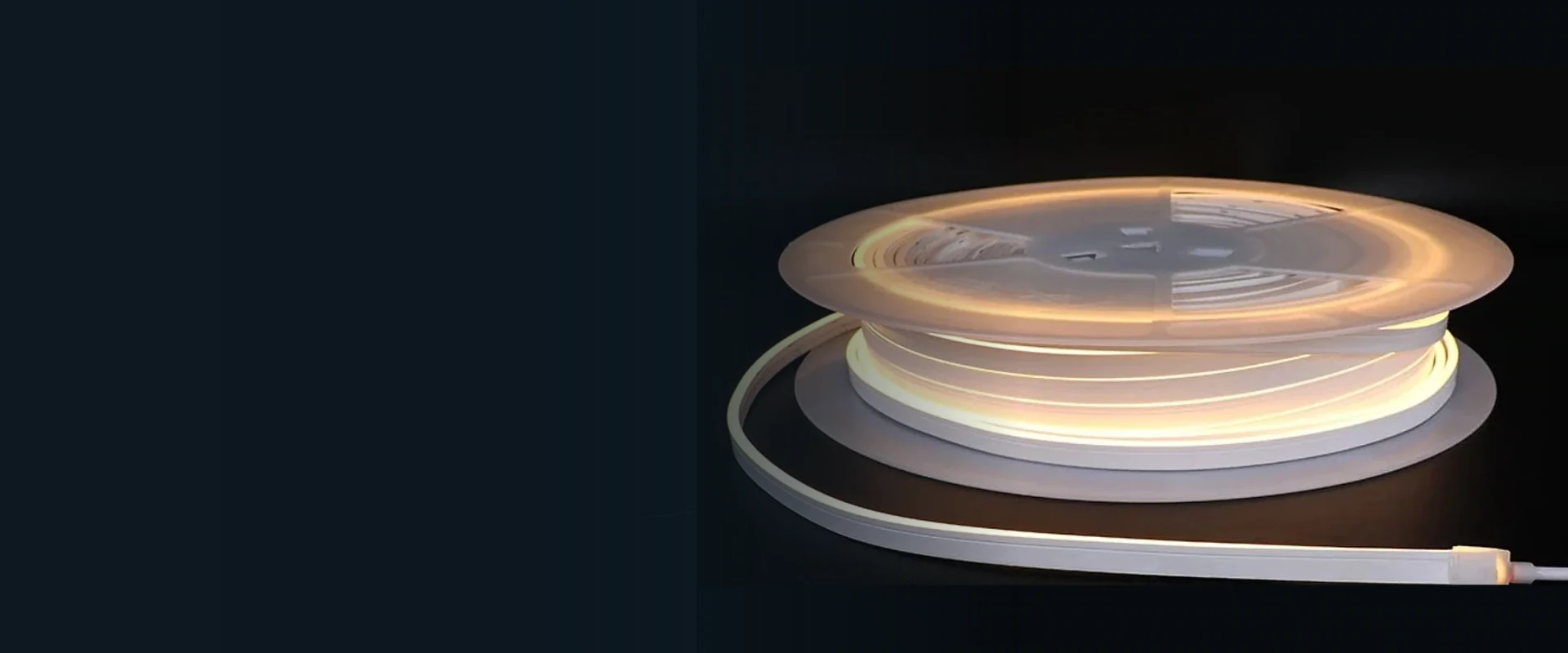

4 × 8 mm LED Neon Flex
A slim 4x8mm LED neon flex for compact light-line details. Choose white or fixed colour, tunable white, or RGB, then match the length, mounting space and cable exit to your installation.
4 × 8 mm profileDC 24 V50 mm cutting unit
Light Options
Choose the Light Output for Your Project
The same 4 × 8 mm section is available with three different LED configurations. Compare the light effect and power requirement, then use the full configuration code when asking for a quotation.
Tunable White
Adjust the white-light appearance within the 2700–5500 K range. Share the intended control arrangement.
- LED
- SMD2216
- Density
- 280 LEDs/m
- Power
- 12 W/m
- Supply / cut
- 24 V / 50 mm
AL-HR11-B24TW28001
Ask About Tunable White →RGB Colour
Choose changing-colour lighting. Confirm the controller and connection layout with the selected RGB assembly.
- LED
- SMD3838
- Density
- 120 LEDs/m
- Power
- 14.4 W/m
- Supply / cut
- 24 V / 50 mm
AL-HR11-B24RGB12001
Ask About RGB →| AlisterTech configuration | LED type | LEDs/m | Colour | CRI | Cut length | lm/m | PCB | Voltage | W/m | Finished size (mm) | IP |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AL-HR11-B243012001 | SMD2835 | 120 | White / Red / Blue Green / Yellow | >80/90 | 50mm | 320 | 5mm | DC24V | 10 | 5000*04*08 | IP67 |
| AL-HR11-B24TW28001 | SMD2216 | 280 | 2700-5500K | >90 | 50mm | 400 | 5mm | DC24V | 12 | 5000*04*08 | IP67 |
| AL-HR11-B24RGB12001 | SMD3838 | 120 | RGB | / | 50mm | 177 | 5mm | DC24V | 14.4 | 5000*04*08 | IP67 |
Choose the complete configuration, not the profile size alone. The listed 5000 mm product length is not a maximum single-feed run; power-feed locations and connection details must suit your installation. The RGB row does not specify a CRI value.
The configurations above are rated IP67. Cable exits, end caps and joints must be specified for the complete installation; tell us about moisture exposure when requesting a quotation.
Cross-Section & Dimensions
A Compact 4 × 8 mm Format
The 4 mm width and 8 mm height help you compare this slim section with your installation space. Allow for the mounting support, end cap and cable exit as well as the tube itself.
- Width
- 4 mm
- Height
- 8 mm
- Light direction
- Side-emitting
Product catalogue: page 13, profile 1
White / fixed-colour configuration: AL-HR11-B243012001
Review the internal section and selected LED configuration together.
View the catalogue section →
Light & Bending
Plan the Light Face and Bending Route
This side-emitting profile directs light through its vertical face. Position that face toward the intended view, and show the required curve on your installation sketch.
Match the permitted bending plane to the installation drawing during quotation. Show corners, transitions and the tightest curve so the selected assembly can follow the route without forcing the profile.
Learn about bend direction →What to Send
Route + Emitting Face
Mark the lighting face, curve direction, available depth and cable exit on the same drawing.
Mounting & Connections
Complete the Light Line, Not Just the Tube
Confirm the supporting channel, end treatment and cable route together. Accessory fit depends on the selected profile and assembly.
Mounting Support
Share the groove or channel section, fixing surface and whether the route is straight or curved. Confirm the support against the actual 4 × 8 mm assembly.
View mounting documents →End Caps & Joints
Show which ends will remain visible and any space available around them. A cut or joint needs its own end-treatment detail, especially where moisture is expected.
View end-connection documents →Cable Exit & Control
Mark the required exit position, connector space and power-feed locations. Include the controller reference for tunable-white or RGB lighting.
Discuss the connection layout →Custom Silicone Extrusion
Need a Custom Fit for Your Installation?
Keep the existing 4 × 8 mm profile when it fits. Need a different groove, strip space or connection? Send a drawing, sketch or sample to discuss a custom profile.
- Share the section and routeInclude the available width and depth, visible light face and the shape you need to follow.
- Define the assemblyChoose the light output and describe the segment lengths, cable exit, mounting and quantity.
- Confirm the sampleCheck fit, light appearance and connections before agreeing the production configuration.
Applications
Plan Compact Light Lines for Your Space
Explore cabinet details, retail displays and architectural light lines. The mounting section, visible face and intended viewing position determine whether this slim profile is the right fit.
Related Profiles
Compare Another Light Format
Product Questions
Before You Choose Your Configuration
Is this a 12 V or 24 V product?
The three configurations shown here use DC 24 V. If you need to match a 12 V installation, tell us before ordering so we can discuss a suitable product rather than substituting these configurations.
Can I cut it to the exact length I need?
The listed cutting interval is 50 mm. Send the required segment lengths, including the space for end caps and cable exits, so the assembly can be planned around the cut points.
Can I use it for a tight curve?
Send a sketch showing the tightest curve, light face and mounting route. The 4 × 8 mm outside dimensions alone do not establish the permitted bend radius or bending plane.
What should I send for a custom quotation?
A drawing, installation photo or sample is a useful starting point. Add the light colour, voltage and control details, lengths, quantity and cable-exit position. If some details are undecided, tell us which ones you need help selecting.
Request a Quote
Get a Quote for Your 4 × 8 mm Light Line
Send a drawing or installation photo, the required light colour, segment lengths, cable exit and quantity. We can discuss the selected 24 V configuration and any changes your installation needs.
Need a different profile geometry? Explore Custom Silicone Extrusion →
