AlisterTech AL-HR11-B243012003 Side-Emitting LED Neon Flex

AL-HR11-B243012003 references the 6 x 12 mm profile pictured on catalogue page 13, profile 3. Compare its listed LED configurations, then confirm the exact light colour, electrical arrangement and connections for your installation.

Request a SampleRequest a Quote

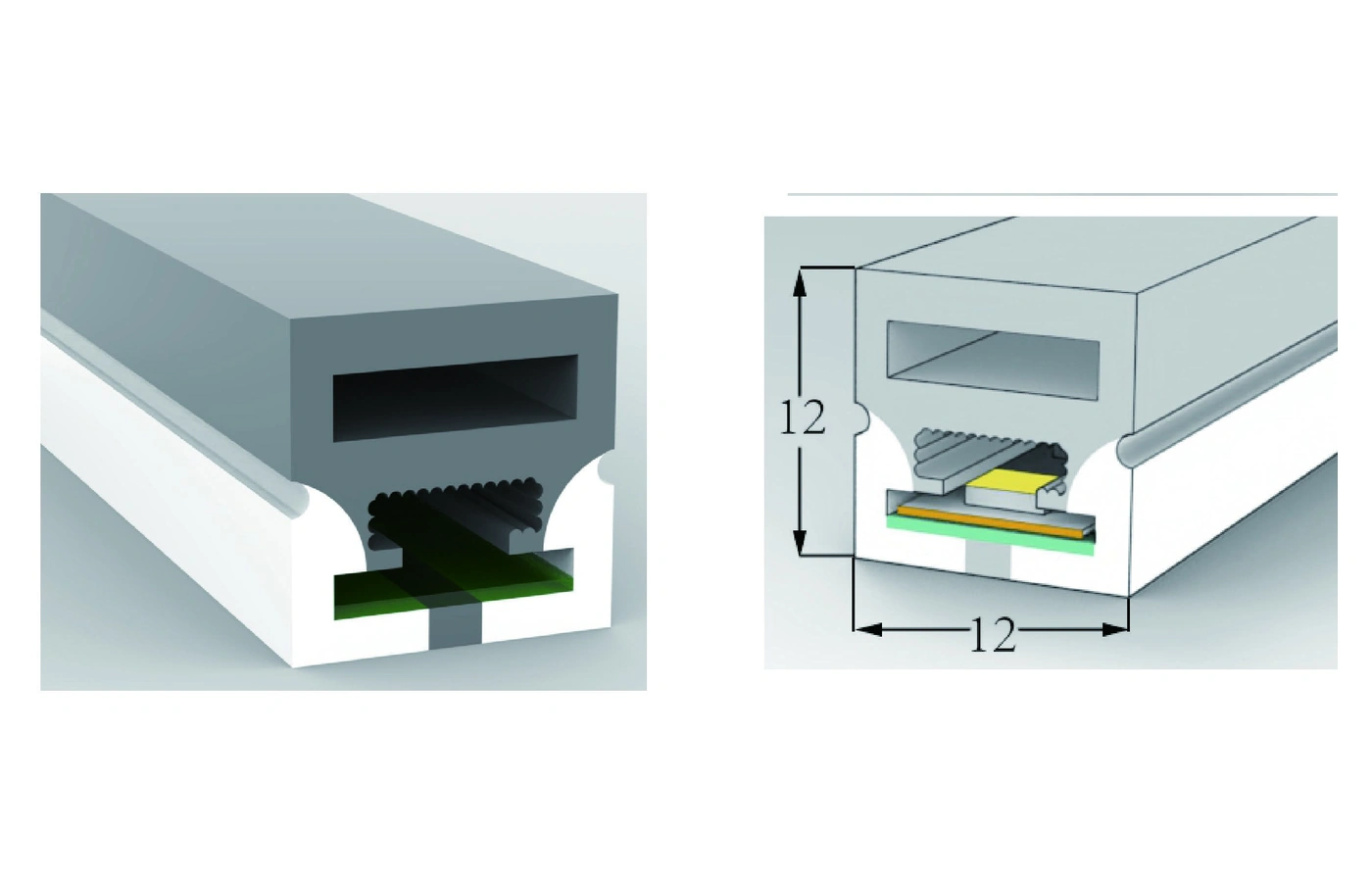

AlisterTech 6 x 12 mm silicone profile with original product view and dimensioned source illustration
Profile illustration from AlisterTech source catalogue. Dimensions in mm; electrical configurations are specified separately.

What Is AL-HR11-B243012003?

AL-HR11-B243012003 is an AlisterTech reference for the 6 x 12 mm side-emitting led neon flex profile shown in the International Catalogue. The page groups the configuration rows pictured under profile 3 on page 13; each retains its own full AlisterTech configuration code. The side-emitting face should be coordinated with the installation outline. Choose the exact row rather than applying one voltage, power or cut length to every variant.

Profile & Dimensions

AlisterTech 6 x 12 mm silicone profile with original product view and dimensioned source illustration
Profile illustration from AlisterTech source catalogue. Dimensions in mm; electrical configurations are specified separately.
ReferenceProfile detail
AlisterTech referenceAL-HR11-B243012003
Catalogue sourceHR11-B243012003
Profile familySide-Emitting LED Neon Flex
Profile size6 x 12 mm

The reference uses the full catalogue code, not a code derived from profile dimensions.

LED Configuration Table

Choose 24 V RGB or 12 V Pixel RGB

For RGB LED neon flex in this profile, AL-HR11-B24RGB12003 is the listed 24 V RGB configuration. AL-HR11-B24RGB10203-2811 is the separate 12 V Pixel RGB configuration with WS2811 SMD2835. These are different electrical and control arrangements, not two supply settings for one product. Use the exact row below when selecting the power supply, cutting interval and connection method.

For a Pixel RGB enquiry, send the intended lighting effect, controller reference, installation route and power-feed locations. Controller compatibility and the planned controlled sections must be reviewed for the selected assembly; the configuration name alone does not specify your complete control system.

Each line below is a separate listed LED configuration of the pictured mechanical profile. Include the full configuration code in your enquiry.

AlisterTech configurationLED typeLEDs/mColourCRICut lengthlm/mPCBVoltageW/mFinished size (mm)IP
AL-HR11-B243012003SMD2835120White / Red / Blue Green / Yellow>80/9050mm3208mmDC24V105000*6*12IP67
AL-HR11-B24RGB12003SMD3838120RGB/50mm1778mmDC24V14.45000*6*12IP67
AL-HR11-B24RGB10203-2811WS2811 SMD2835102Pixel RGB/29.4mm3448mmDC12V242000*6*12IP67

Specifications vary by LED configuration and model. Confirm the final quoted configuration and current technical documentation before ordering. A slash is reproduced where the catalogue does not give a CRI value. The * notation and finished-size values are retained as printed; do not treat the first size value as a maximum single-feed length.

IP67 is listed for these catalogue configurations. Confirm the complete quoted assembly, cable exits and end treatment for the intended exposure; the table is not a separate test report or certification.

Review the Emitting Face & Route

Identify the vertical face that must remain visible, then check the available profile width and height. Show the curve, corners, cable exits and mounting route on your drawing. Choose the electrical and colour configuration from the exact catalogue row, rather than transferring specifications from another section. Emitting direction and bending direction are different decisions: confirm the permitted bending plane and route for the quoted assembly before installation.

What to Show on the Drawing

  • Visible emitting face and viewing direction
  • Available section width and height
  • Curve, corners and mounting route
  • Cable exits, power location and control method
  • Required length and project quantity

Applications to Review

Signage & outlines

Confirm the installation detail with the selected configuration.

View application

Architectural curves

Confirm the installation detail with the selected configuration.

View application

Display details

Confirm the installation detail with the selected configuration.

View application

Accessories & Technical Documents

Accessory compatibility should be confirmed against the selected profile before quotation. Matching dimensions alone do not establish the correct end cap, cable exit or mounting fit.

Use the exact profile and configuration when discussing your project. The International Catalogue contains the complete model rows; accessory documents support a separate fit review.

Manufacturing & Custom Details

White silicone profile being checked at extrusion tooling during a production trial
Silicone profile at extrusion tooling during a production trial. This photograph does not establish equipment capacity or a model-specific test result.

From an Existing Profile to a Custom Detail

Start with a catalogue profile when its section fits. If the groove, emitting face, strip space or end interface needs a different geometry, send a drawing, installation sketch or physical sample for custom silicone extrusion review.

Compare Another Profile

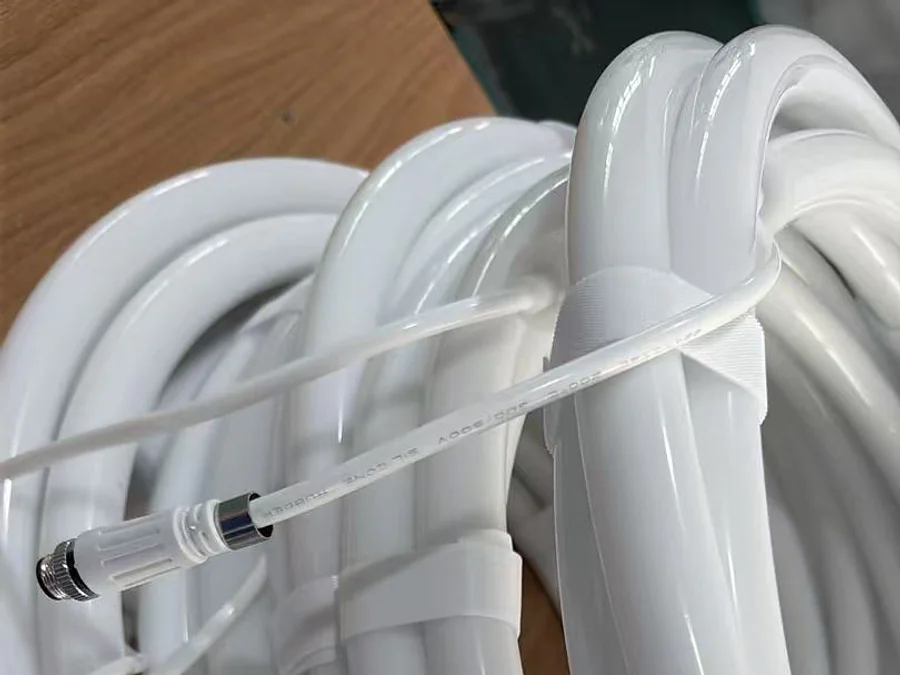

Close view of a real flexible lighting coil and cable connector

Discuss AL-HR11-B243012003 for Your Installation

Send the exact configuration code, section drawing, light appearance and quantity. Include mounting and cable-exit requirements so the complete quotation can be reviewed.

Request a Quote
