AL-HR11-B24301200610 x 18 mm Side-Emitting LED Neon Flex

AL-HR11-B243012006 offers the 10 x 18 mm section shown below. Select the light colour and exact electrical configuration, then match the mounting route and cable exits to your installation.

Request a Quote Compare Configurations

Profile and dimensions from the AlisterTech International Catalogue. Electrical options are specified separately.

Choose the Section Around Your Installation

10 x 18 mm. Dimensions in mm.

Orient the vertical emitting face toward the intended view. Show the outline, curve transitions and cable exits before confirming the permitted bending plane.

Allow for the LED board, mounting support, cable exit and end treatment, not only the outside size. Emitting direction does not establish a permitted bending plane or minimum bend radius.

LED Configuration Table

Choose the exact AL-HR11-B243012006 configuration for your quote. Voltage, light source, output and cutting interval are row-specific.

Select the Electrical Configuration

The 10 x 18 mm profile lists 24V single-colour and RGB options with a 50 mm cutting interval. The separate WS2811 Pixel RGB option uses DC12V and 29.4 mm cuts. These are distinct configurations; do not connect the Pixel option to the 24V supply of another row.

Configuration	LED type	LEDs/m	Colour / CCT	CRI	Cut length	lm/m	PCB	Voltage	W/m	Finished size (mm)	IP
AL-HR11-B243012006	SMD2835	120	White / Red / Blue Green / Yellow	>80/90	50mm	420	10mm	DC24V	14	50001018	IP67
AL-HR11-B24RGB12006	SMD3838	120	RGB	/	50mm	167	10mm	DC24V	14.4	50001018	IP67
AL-HR11-B24RGB10206-2811	WS2811 SMD2835	102	Pixel RGB	/	29.4mm	324	10mm	DC12V	24	50001018	IP67

CRI values and * notation are retained as printed. A slash means no CRI value is supplied for that row. Finished size is not a guaranteed maximum single-feed length; confirm feeds, finished lengths and controls for your project.

Technical reference: International Catalogue page 13, profile 6. Download the source specifications

Mounting, Accessories and End Connections

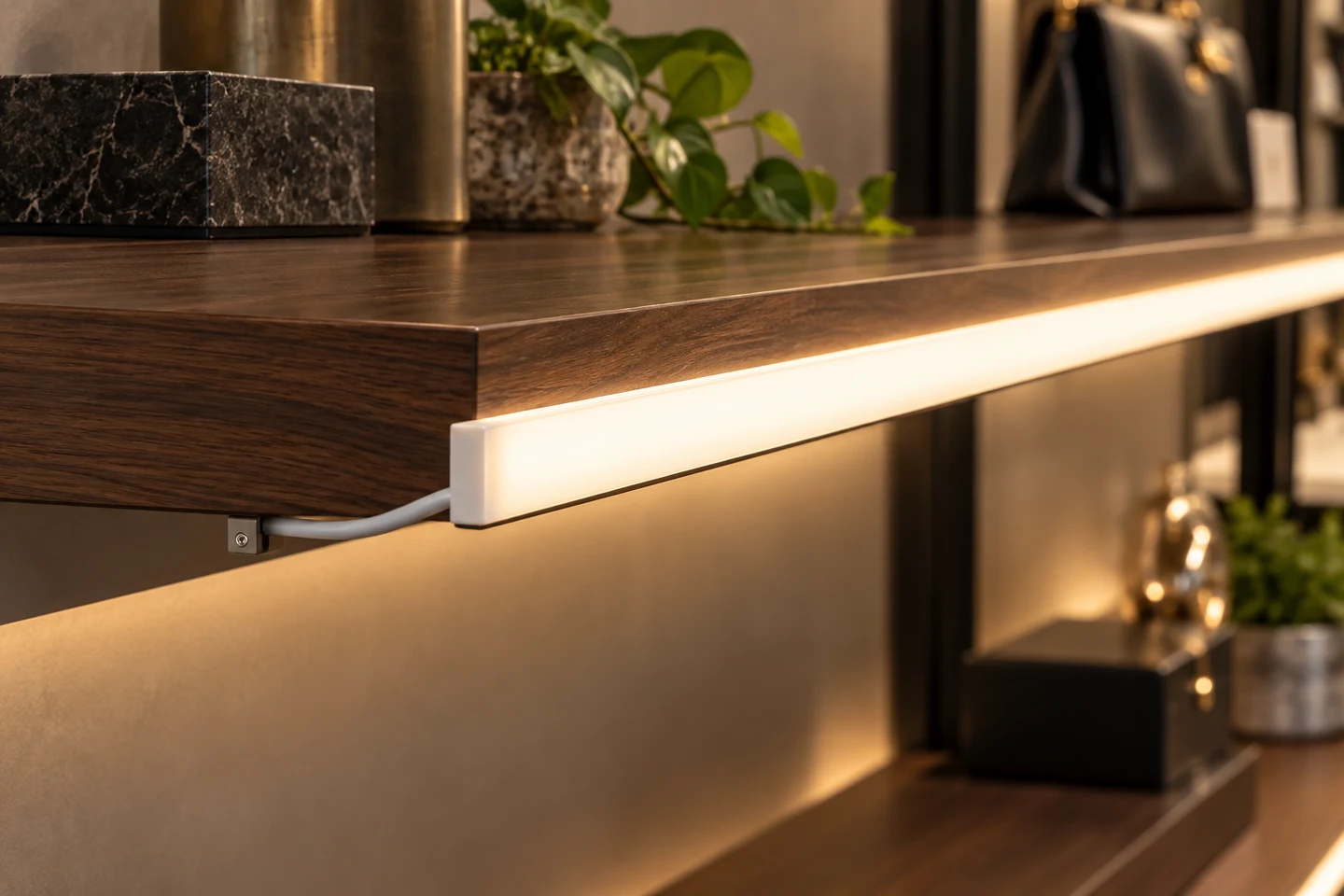

Mounting and cable-end planning concept — Installation concept; mounting parts and terminations must be matched to the selected profile. AI-generated illustration.

Match the Section and Retention

Show the mounting surface, available width and depth, corners and connection space. A similarly sized cap or bracket is not automatically compatible.

Review accessories

Confirm the Complete Assembly

Identify cable exit, end treatment, supply and controller positions. Select colour control separately from mechanical shape and approve the light line from the intended view.

Technical documents

Applications for This Profile

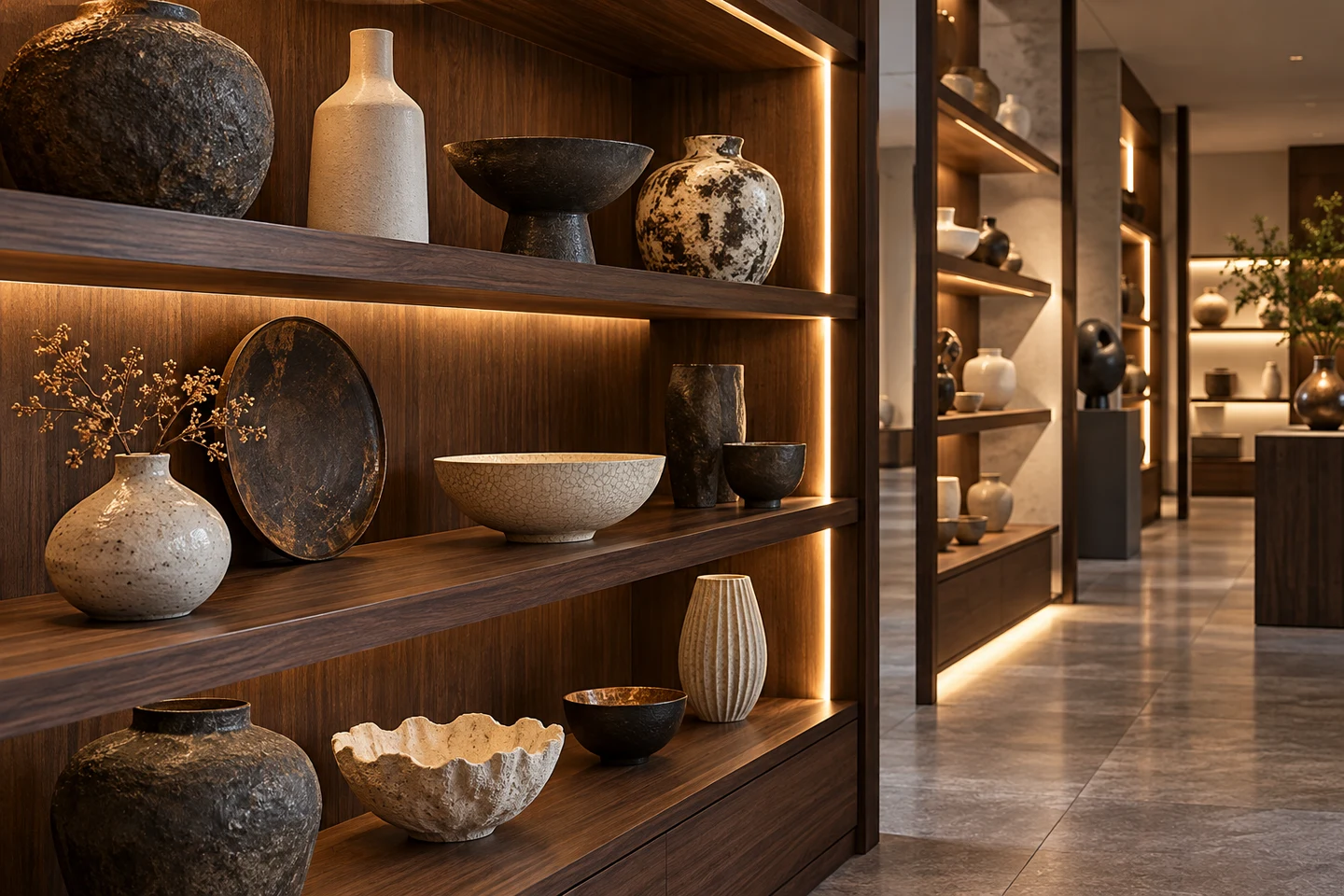

Linear lighting application concept — Application concept; final light appearance depends on the selected assembly. AI-generated illustration.

Orient the vertical emitting face toward the intended view. Show the outline, curve transitions and cable exits before confirming the permitted bending plane.

Custom Details and Sample Approval

AlisterTech silicone extrusion production detail.

From a Catalogue Section to Your Detail

Start with this profile when its section fits. If the groove, light face or internal clearance must change, send a drawing or sample for custom silicone extrusion. Include segment lengths, colour or animation, connection requirements and quantity.

Review fit, light appearance and connections on a sample before agreeing production.

Frequently Asked Questions

Which configuration should I quote?

Send the full AL-HR11-B243012006 profile reference together with the exact configuration code from the table. The three rows have separate light-source and electrical requirements.

Can I use the same supply for every option?

Use the voltage and power of the selected row. This group includes separate 12V Pixel RGB and 24V options; they are not two settings for one product.

How do I confirm the mounting and cable exit?

Provide the groove or support dimensions, curve route, cable direction and end space. Match caps and retention parts to the actual section before ordering.

Is this profile suitable for outdoor use?

The listed configurations carry IP67 in the catalogue. Confirm the complete quoted assembly, terminations and exposure. This does not establish suitability for immersion beyond the specified conditions, cleaning jets or every outdoor environment.

Can the profile or finished lengths be customised?

Send a drawing, required lengths, light appearance, controller and quantity. Review a sample for geometry, light effect and connections before agreeing the production configuration.

Discuss AL-HR11-B243012006 for Your Project

Send the selected configuration, route drawing, lengths, mounting details and quantity for a matched quote.
